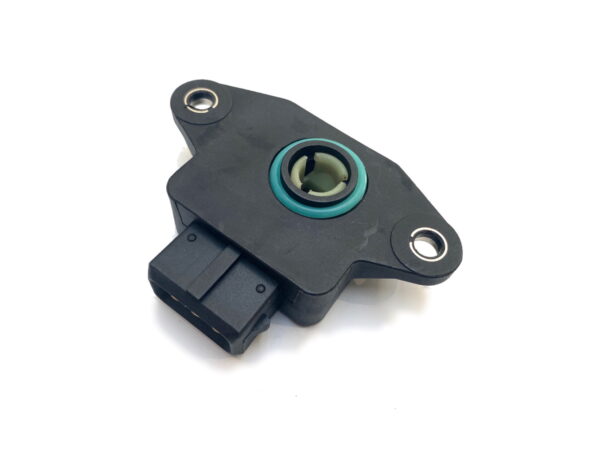

Universal throttle position sensor (OEM Style)

Description An OEM style universal throttle position sensor suitable for use with most types of aftermarket engine management. It uses a common 7mm diameter “D” shape drive and is mounted via the 4mm holes either side. The sensor has a standard 3 pin JPT (mini timer socket). Resistance = 2.5K ohm. Wire functions: Pin 1 = ve supply (usually 5V from ECU) Pin 2 = -ve (ground) Pin 3 = TPS Signal (to ECU) Details: Distance between mounting holes (center to center) = 55mm Spindle shaft is offset by 5mm Holes and spindle shaft are inline Spindle drive should be 7mm OD with flat side Note: Pins 1 and 2 may be reversed depending on which side of the throttle the TPS is to be mounted, and in which direction the throttle opens. No harm should come from wiring the supply back to front, only the throttle angle will apear reversed.
