Raspberry Pi Compute Module 4 Antenna Kit

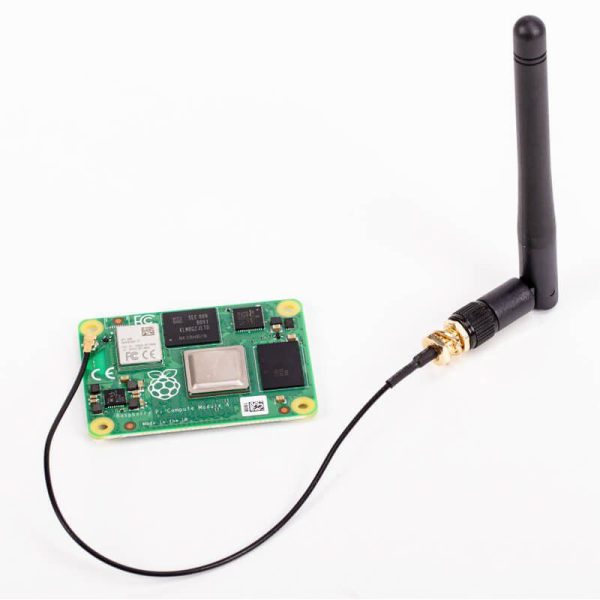

This antenna kit is launched in conjunction with the Compute Module 4 from the Raspberry Pi Foundation. CM4 with built-in wireless models comes with an onboard U.FL connector for an external antenna, thus this antenna kit. This Antenna Kit is certified for use with the Raspberry Pi Compute Module 4. If a different antenna is used, then separate certification will be required, and this must be arranged by the end-product design engineer. Note: The U.FL connector is only populated on Compute Module 4 with Wireless, the non-wireless variations/models DO NOT come with a U.FL connector and wireless metal “can”. This antenna kit comes with SMA (Female) bendable (0º to 90º) antenna and RF cable with RP-SMA (male) with MHF1/U.FL connector and is 205mm length. You can mount the SMA antenna to an external case/enclosure to extend the wireless signal. Note: CM4 (with wireless) is capable of switching the use of onboard PCB antenna or external antenna from software/IO. Features and Spec Antenna Model number: YH2400-5800-SMA-108 Frequency range: 2400-2500/5100-5800 MHz, dual-band Bandwidth: 100–700MHz VSWR: ≤ 2.0 Gain: 2 dBi Impedance: 50 ohm Polarisation: Vertical Radiation: Omnidirectional Maximum power: 10W Connector: SMA (female) Dimensions: 108 mm × 10 mm Shell material: ABS Installation: Screw Operating temperature: -35 to 75°C Weight: ± 3 g SMA to MHF1 cable Model number: HD0052-09-A01_A0897-1101 Frequency range: 0–6GHz Impedance: 50 ohm VSWR: ≤ 1.4 Maximum power: 10W Connector (to antenna): SMA (male) Connector (to CM4): MHF1 Dimensions: 205 mm × 1.37 mm (cable diameter) Shell material: ABS Operating temperature: -45 to 80°C Compliance: For a full list of local and regional product approvals, please visit raspberrypi.org Packing List 1 x Antenna Kit for Raspberry Pi Compute Module 4 Resources Antenna Kit Product Brief
